EXARK EX – 2916 UHF COSMETICS RFID TAG

EXARK EX – 2916 UHF COSMETICS RFID TAG

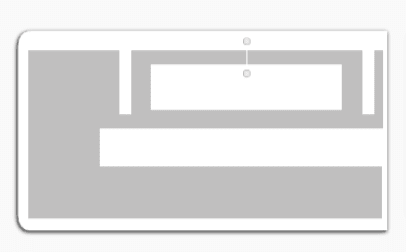

EXARK EX- 2916 UHF Cosmetics RFID Label is a passive UHF RFID label for Mount on Metal applications demanding long read range in small form factor with a high performance permanent adhesive.

Description

  • High performance permanent adhesive ensures strong adhesion
  • disposable layer between each RFID label ensures efficient Thermal transfer printing.
  • label with all round performance that can be deployed across a wide range of industries.
  • ideal for asset tracking of medical devices, IT (Information Technology) asset tracking, industrial asset tracking, tracking high value/luxury retail items, etc.



Product Details

ELECTRICAL:

Standards: EPC Global Class1 Gen2 ISO 18000-6C
Frequency Ranges: Global 860-960MHz
IC type: NXP UCODE 8
Memory configuration: EPC96 bits extensible to 128-bits
Read range: Up to 3ft/ 1 m
Mode of Operation: Passive



MECHANICAL:



Substrate: PET
Liner: Glassine Liner
Face material: PET
Tag dimensions: 29x 16x 2 mm



ENVIRONMENT:



Operating Temperature: -20°C~75°C
Operating Humidity: -20°C~85°C
Storage Temperature: -20°C~75°C



APPLICATION INTERFACE:
