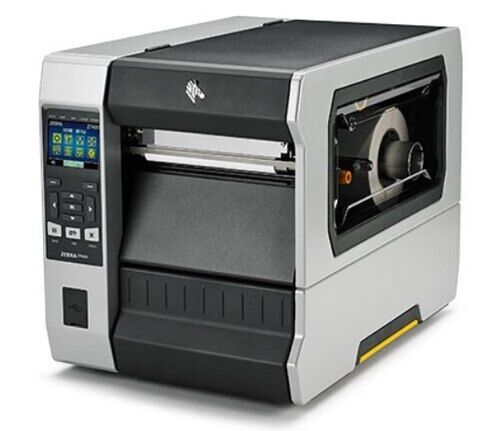

ZEBRA ZT610R INDUSTRIAL RFID PRINTER

ZEBRA ZT610R INDUSTRIAL RFID PRINTER

Every detail of the Zebra ZT610 RFID Printer was designed to put time back in your day. An intuitive LCD interface simplifies daily use. Color-illuminated media and ribbon paths streamline routine maintenance. Adjustable media width and pressure toggles easily accommodate more applications. Onboard sensors, diagnostics, and help resources empower you to manage issues without having to call in support.

Built to deliver outstanding print quality under the most challenging industry conditions, the ZT610 Series printers virtually eliminate operational downtime due to printer failure. Their durable, all-metal designs hold up against extreme temperatures, dust, debris, and moisture. Guided instructions and feedback eliminate common errors, while reducing manual adjustments. High-quality print mechanisms and internal components deliver superior print quality and speed across the widest range of applications.

Description

  • Supports tags compatible with UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RFID protocols.
  • Adaptive Encoding Technology automatically selects optimum encode settings.
  • Supports industry standard, multi-vendor, chip-based serialization.
  • Supports block permalocking of user memory compatible with ATA Spec 2000.
  • Allows users to track performance with RFID job-monitoring tools.
  • Print Methods: Thermal transfer and direct thermal.
  • Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window.
  • Side-loading supplies path for simplified media and ribbon loading.
  • Communications: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0.
  • Highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance.
  • Simplified icon menu navigation system categorizes settings into logical groups of functions.



Product Details

ELECTRICAL:

Air Interface Protocol: EPC UHF Class 1 Gen 2 (ISO 18000-63)
Operating Frequency: FCC (902-928 MHz)
Data Interface: USB 2.0, High Speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0
Power Source: Universal power supply with power-factor correction 90-265 VAC



MECHANICAL:



Resolution: 203 dpi, 300 dpi, or 600 dpi
Max Outer Diameter: 203 mm (8 in)
ID Core Options: 76 mm (3 in)
Dimensions: 505 x 268.2 x 365.68 mm (19.88 x 13.44 x 15.58 in)
Weight: 22.7 kg (50 lbs)



ENVIRONMENT:



Operating Temperature: 5° to 40°C (40° to 104° F)



APPLICATION INTERFACE:



Host API: ZBI 2.0, ZPL, ZPL II, XML
