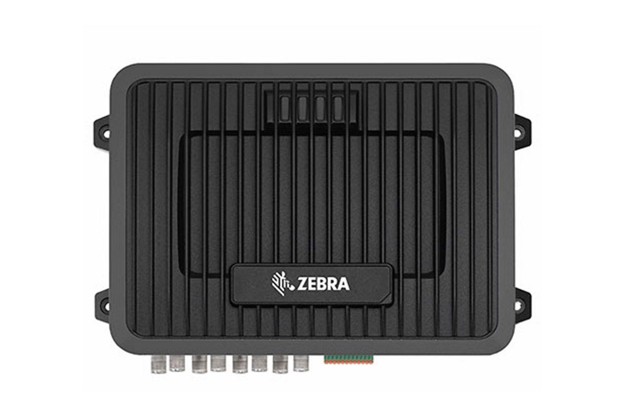

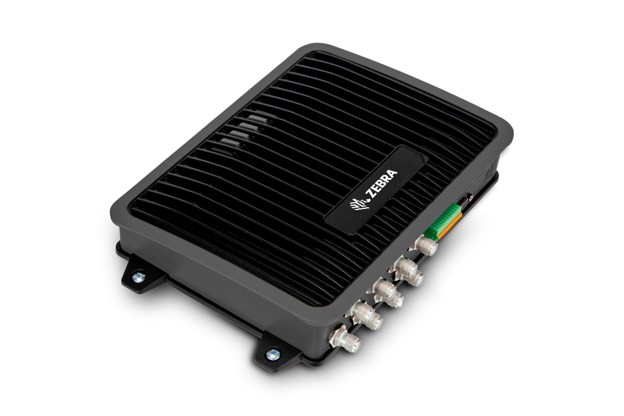

Zebra FX9600 Fixed RFID Reader

Zebra FX9600 Fixed RFID Reader

Zebra FX9600 is a rugged fixed RFID reader that delivers high performance for the most demanding warehouses, factories and distribution centers. Delivering great read accuracy and enterprise class reliability, the FX9600 provides true real time visibility of your assets, inventory and supply chain while delivering superior performance in large scale RFID deployments.

It helpful for RFID applications. Zebra FX9600 combines industry leading Radio Frequency performance with advanced processing capabilities to capture and manage RFID data with high speed and accuracy. It Available in 4 port and 8 port configurations, the FX9600 supports multiple read zones. It is ideal for dock doors, conveyor systems, production lines and inventory tracking.
Its rugged industrial design, PoE support and embedded edge computing capabilities simplifies deployment while reducing infrastructure costs. With support for global RFID standards and integration into existing enterprise systems FX9600 helps organizations improve inventory accuracy, automate workflows and gain greater operational visibility.

Product Details

  • High performance
  • Available in 4 port & 8 port configurations
  • Supports EPC Class 1 Gen 2 v2 and ISO 18000 63
  • Good read sensitivity for RFID environments
  • Output power up to 33 dBm
  • Embedded Linux system
  • Edge application hosting & local data processing
  • Power over Ethernet PoE/PoE+ support
  • Ethernet, USB, and serial connectivity option
  • IPv4 and IPv6 support
  • Enterprise-grade security features
  • Rugged IP53 rated housing for industrial environment
  • Best for warehousing, manufacturing, logistics, and asset tracking.

Description

Specification Details
RFID Standard EPC Class 1 Gen 2 v2 / ISO 18000-63
Frequency Range 865–868 MHz, 902–928 MHz (region dependent)
Antenna Ports 4 or 8 Monostatic Ports
Maximum RF Output Up to +33 dBm
Receive Sensitivity Up to -86 dBm
Processor Texas Instruments AM3505, 600 MHz
Memory 512 MB Flash, 256 MB DRAM
Operating System Linux
Connectivity Ethernet, USB Host/Client, Serial
I/O 4 Inputs, 4 Outputs
Power Options PoE, PoE+, 24V DC
Protection Rating IP53
Operating Temperature -20°C to +55°C
Dimensions 273 x 184 x 50 mm
Weight Approx. 2.13 kg
