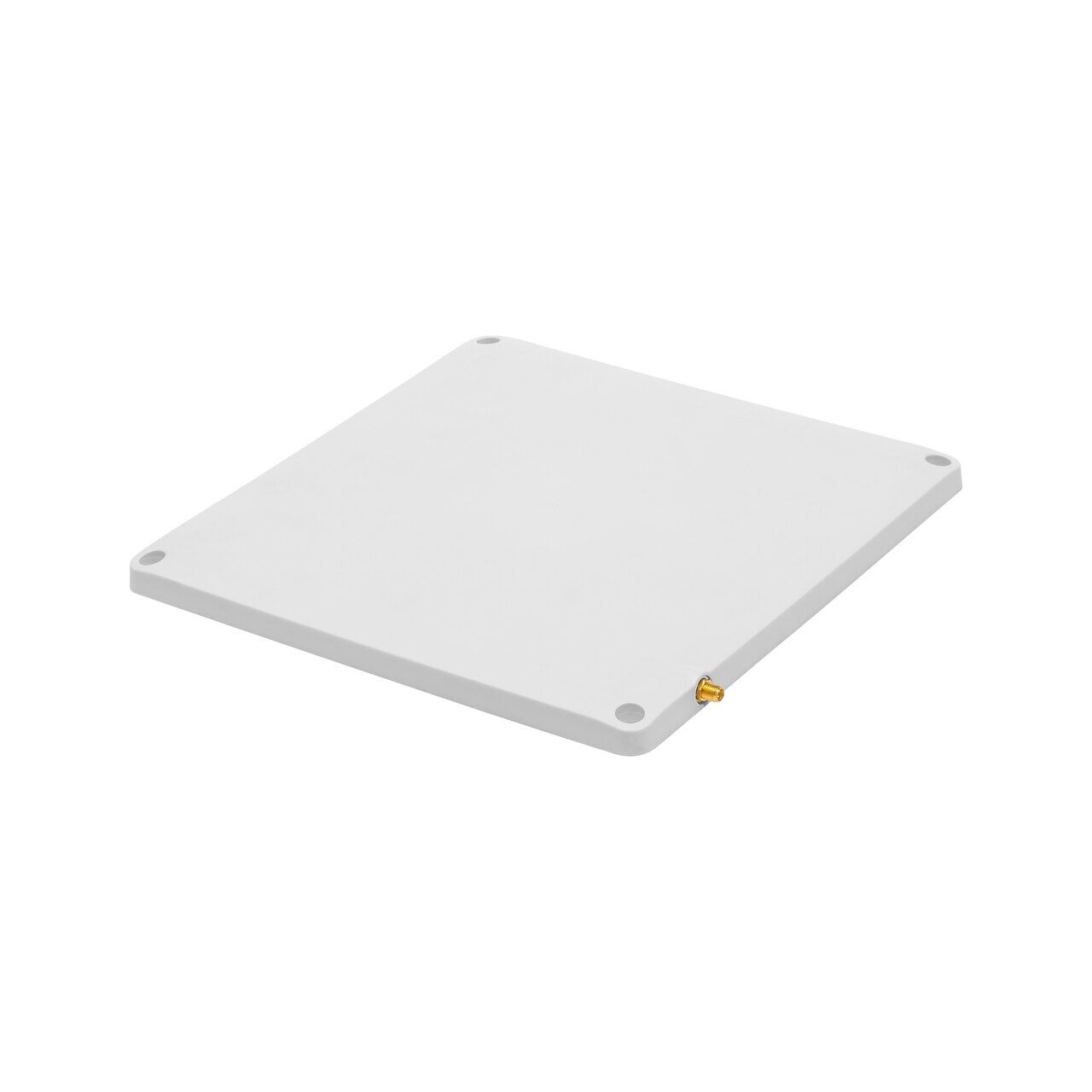

Slim Outdoor Antennas(SlimLine A5010)

Slim Outdoor Antennas(SlimLine A5010)

The Times-7 industry leading ultra-low profile design is now available in a compact 250mm / 10 inch square footprint. IP67 rated for permanent outdoor use and built to Times-7’s high standard for quality and robustness, the circularly polarized A5010 creates a new benchmark for multi-purpose UHF RFID antennas.

Description

  • Up to 9 m (29 ft) read range.
  • Just 14 mm / 0.55 in thick.
  • IP 67 rated for outdoor use and industrial applications.
  • High performance and rugged design.
  • Thin, light, and attractive aesthetics.
  • Ideal for space constrained applications.
  • Already proven in retail, race timing, access control, and more.
  • Reflection protection that guarantees uninterrupted high read performance.
  • Multiple mounting options.
  • Extremely low axial ratio.

Product Details

ELECTRICAL:

Operating Frequency: FCC (902-928 MHz), ETSI (865-867 MHz)
Polarization: Right hand circular
Gain: 8 dBic
Max Read Distance: Up to 9m (29 ft)
Elevation Beamwidth: 68°
Azimuth Beamwidth: 68°



MECHANICAL:



Connector Type: SMA female (connects to SMA male)
Cable: Not included
Mounting: Flush mount
Dimensions: 250 x 250 x 14 mm (9.85 x 9.85 x 0.55 in)
Weight: 0.73 kg (1.6 lbs)



ENVIRONMENT:



IP Rating: IP 67
Operating Temperature: -20° to +55°C (-4° to +131°F)
