RFD40 RFID Reader

RFD40 RFID Reader

Speed Up Your RFID Scanning for High-Performance Results

At Acube Infotech, we help customers with comprehensive RFID solutions that meet their business needs. Be it an RFID reader upgrade or the deployment of a full RFID asset tracking solution, Acube Infotech has the expertise and product range to support your journey. The RFD40 RFID Reader is an integral part of our offering to help your business benefit from the latest in RFID technology.

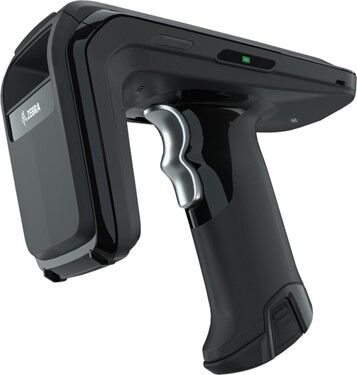

The RFD40 RFID Reader by Zebra Technologies provides enterprise-class RFID tag reading with the ultimate in speed, efficiency, and accuracy for businesses needing high-performance RFID scanning. Designed to perform in the most challenging environments and providing high-speed reads with the utmost in reliability, the RFD40 RFID reader will change how industries address asset management, inventory tracking, and operational efficiency.

Description

Key Features of the RFD40 RFID Reader

  • Superior Speed in Reading: RFD40 RFID Reader is ultra-fast reading of Radio Frequency Identification tags, having the capacity to read over 1,300 tags per second; thus, this will be ideal for industries needing a high volume in tracking inventory.
  • Multi-Platform Connectivity: Seamlessly integrate with a mobile device, such as Android, iOS, and Windows, using Bluetooth connectivity or a USB connection, thereby offering flexibility on several platforms for businesses.
  • Ergonomically Designed for Comfort: Its lightweight, ergonomic design makes the RFD40 easy to operate. In this case, operators are able to scan for an extended period without discomfort. Hence, it would be very suitable for retail, warehouse, and logistic environments.
  • Extended Battery Life: The powerful battery of the RFD40 RFID reader supports continuous scanning of as many as 5 hours, thereby avoiding operation interruption caused by frequent recharging.
  • Future-proof, upgradeable: The RFD40 thus provides a way for businesses to upgrade to more advanced functionalities, such as Wi-Fi 6, necessary for even broader options of connectivity flexibility.

RFD40 RFID Reader Benefits

  • Increased Operational Efficiency: With ultra-fast read rates, businesses can process and track items numbering in the thousands in just a few seconds, hence reducing manual errors while being able to hasten the pace of their operations.
  • Precise Real-Time Data: The RFD40 RFID Reader ensures the accurate and real-time tracking of RFID-tagged assets to achieve better inventory visibility and stock discrepancies. Flexible and Scalable: Be it a small business or large enterprise, the RFD40 RFID Reader will grow with your business-from a few to hundreds of readers-and will easily integrate with your existing RFID tracking system.



Applications of the RFD40 RFID Reader

  • Retail: Track RFID-tagged merchandise in real time with the RFD40 and facilitate inventory management. Run your cycle counts more quickly and reduce shrinkage.
  • Warehouse and Logistics: Manage your supply chain more effectively-tracking goods, pallets, and shipments fast and accurately. The RFD40 RFID reader helps you always have the right data in hand.
  • Healthcare: Improving efficiency in tracking equipment, patient records, and medication through the RFD40 in hospitals and clinics accurately and quickly. This is further used for the care of the patients and resource management.

Product Details

Specifications

Physical Characteristics

Dimensions 5.94 in. H x 3.3 in. W x in. 6.5 in. L
15.1 cm H x 8.4 cm W x 16.65 cm L
Weight ~19.1 oz./~541 grams (sled with battery)
Power Quick-Release, PowerPrecision+ Li-Ion 7000
mAh battery
Notification Decode LEDs
Battery Status LED
Beeper
User Input Tri-Function User Programmable Trigger

RFID Performance

Standards Supported EPC Class 1 Gen 2; EPC Gen2 V2
RFID Engine Zebra Proprietary Radio Technology
Fastest Read Rate 1300+ tags/sec
Nominal Read Range ~19.7+ ft./ ~6+ m
Frequency Range and
RF System Output
US: 902-928MHz; 0 — 30 dBm (EIRP)
EU: 865-868MHz; 0 — 30 dBm (EIRP)
916.3, 917.5, and 918.7 MHz; 0 30 dBm (EIRP)
Japan: 916-921MHz (w LBT), 0 — 30 dBm (EIRP)

User Environment

Drop Specification Multiple 5 ft./1.5 m drops to concrete
Tumble Specification 500 cycles (1000 drops, 1.6 ft./0.5 m)
at room temperature
Operating Temp. -10°C to 50°C/14°F to 122°F
Storage Temp. -40°C to 70°C/-40°F to 158°F
Humidity 5-85% non-condensing
Electrostatic
Discharge
+/-15kV air discharge
+/-8kV direct discharge
+/-8kVdc indirect discharge
Sealing IP54

Accessories

Cradles and Charging Cable Cup
USB-C Cable
USB Wall Brick for USB-C Cable and Cable Cup
1-Slot Charging Cradle
1-Slot Charging and USB Cradle
Multi-Slot Charging Cradle
Multi-Slot Charging and Ethernet Cradle
4-Slot Battery Toaster
Other Accessories eConnex Adaptors for Supported Zebra Mobile Computers
Battery Locking Foot
Belt Holster

Communication

Host Connection eConnex™ (Electric 8-pin Connection)
USB-C Cable
USB Cable Cup
Host Computer Zebra mobile computers and tablets
Windows-Based PCs
Mobile Computer Adaptors eConnex™

Regulatory

EMI/EMC FCC Part 15 Subpart B Class B; ICES 003 Class B;
EN 301 489-1; EN 301 489-3; EN 55035; EN 55032 Class B; EN 60601-1-2
Electrical Safety IEC 62368-1 (ed.2)
|UL 62368-1, second edition, CAN/CSA-C22.2
No. 62368-1-14
RF Exposure EU: EN 50364, EN 62369-1, EN 50566, EN 62311;
USA: FCC Part 2. 1093 OET Bulletin 65 Supplement ‘C’; Canada: RSS-102
RFID EU EN 302 208, FCC Part 15 Subpart C;
Canada: RSS-247
