Description
Important Characteristics

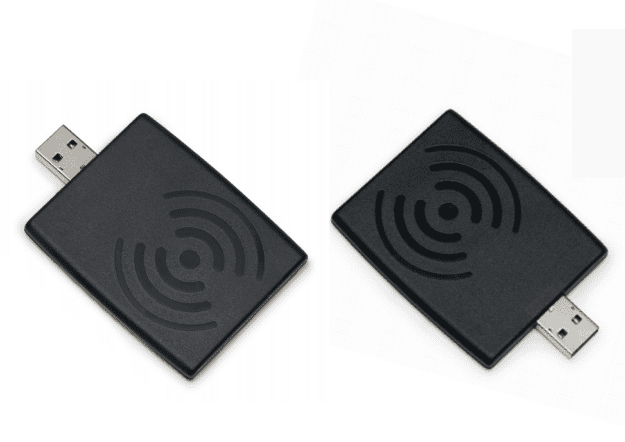

- Portable USB RFID Encoder
- Can read and write UHF RFID Tags
- RF output power can be varied from 1 to 20 dBm
- Maximum range up to 1 metre
- High-speed scan rate of 200 tags per second
- Plug & Play USB interface
- Integrated circular cross dipole antenna
- EPC Class 1 Gen 2 (ISO 18000-6C) tags support
- Tag deactivation capability
- Status lights using dual LEDs
- Pre-configured API for quick software development
- Operating systems supported are Windows, Linux, and Android
- Compact size: 53 × 79 × 7 mm
- Light-weight construction weighing 22 grams
Advantages
Nordic ID STIX makes the implementation of RFID technology easy since it is highly performing and has a very small size. The adjustable read range enables precise control on the desktop encoding stations and point-of-sale systems to minimize accidental tag reads. Developers appreciate the simple integration thanks to the Nordic ID NUR API.
Applications
Encoding & Commissioning of RFID Tags
Point-of-sale systems in retail
EAS at Point of Sale
Smart shopping solutions
Information kiosks
Interactive displays
Document/file tracking
Product authentication
Asset identification
Technical Specifications
| Specification | Details |
| RFID Technology | UHF RFID |
| RFID Standard | ISO 18000-6C (EPC Class 1 Gen 2) |
| RF Output Power | Up to 20 dBm (100 mW ERP), adjustable |
| Read Range | Up to 1 metre (typical) |
| Read Speed | Up to 200 tags/second |
| Antenna | Integrated circular cross-dipole |
| Frequency | ETSI 865.6 – 867.6 Mega Hz |
| Interface | USB 2.0 |
| Operating Systems | Windows XP/7/8, Linux, Android |
| Indicators | 2 LED indicators |
| Power Consumption | 2.5 W |
| Dimensions | 53 × 79 × 7 mm |
| Weight | 22 g |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Indoor Use | Yes |
Software & Integrability
The NORDIC ID STIX comes equipped with software to ensure fast and smooth integration:
RFID Demo Software – For testing the performance of the reader
RFID Configurator – Device Configuration tool
Nordic ID NUR API – To control the reader completely
SDK support for developing applications using C/C++ and .NET programming languages
What Makes the NORDIC ID STIX USB RFID Encoder Superior?
The NORDIC ID STIX USB RFID encoder gives you high performance combined with good simplicity and value for money. This is because of its small form factor, powerful UHF RFID capabilities, and the ease with which the device can be integrated into your software.
