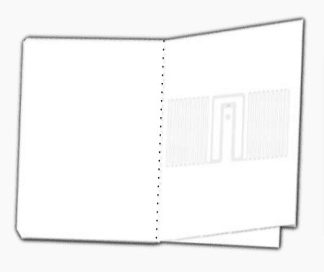

EXARK EX – 701 UHF RFID FLAG TAG

EXARK EX – 701 UHF RFID FLAG TAG

EXARK EX-701 UHF RFID Flag Label is specially designed for retail merchandise with liquid inside. It can be applied to flat or curved surfaces. The small-sized label is friendly to merchandise package and it offers an optimal solution for shelf display.

Click here to download the Datasheet

Enquire Now

Description

  • Suitable for small retail
    merchandises
  • Retail
  • High inventory accuracy and
    visibility
  • Excellent bulk reading
    performance
  • improve product management
  • Suitable for all categories of retail
    merchandise with liquid inside,
    such as alcohol, beverages,
    cosmetics, perfumes, etc.

Product Details

ELECTRICAL:

Standards: EPC Global Class1 Gen2 ISO 18000-6C
Frequency Ranges: Global 860-960MHz
IC type: NXP UCODE 7
Memory configuration: EPC96 bits; Unique TID 96 bits;
Read range: Up to 5ft/1.5 m
Mode of Operation: Passive



MECHANICAL:



Substrate: PET
Liner: Glassine Liner
Face material: PET
Tag dimensions: 92x 25 mm



ENVIRONMENT:



Operating Temperature: -20°C~50°C
Operating Humidity: -20°C~65°C
Storage Temperature: -20°C~50°C



APPLICATION INTERFACE:
