Confidex Silverline Blade™

Confidex Silverline Blade™

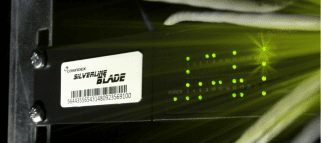

With footprint of only 2.5 x 6 cm and thickness of 1.2 mm, the Confidex Silverline Blade™ is small and unobtrusive passive RFID label. Despite the small size, the Blade boasts a respectable 4.5 meter read range on metal. Equipped with an innovative antenna design, the Silverline Blade™ handles the complete global RFID radio frequency range of 865 to 928 MHz – without harming the performance. The Silverline Blade™ is easy to print and program on-demand making it an ideal solution for tagging your assets from servers to refrigerators.

Click here to download the Datasheet

Enquire Now

Description

  • IP 68 rated.
  • Optimized for asset tagging.
  • Printable, metal-mount label tag.
  • Can be applied on a curved surface.
  • Tolerates industrial washing with standard solvents.
  • Worldwide operation in the RFID UHF bands (865-928 MHz).

Product Details

ELECTRICAL:



Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: Global (865-928 MHz)
IC Type: Impinj Monza R6
Memory: EPC 96 bits, TID 48 bits
EPC Memory Content: Unique number encoded as a default
Max Read Distance – On Metal: Up to 4.5 m (15 ft)
Max Read Distance – On Plastic: Up to 1.5 m (5 ft)
Max Read Distance – On Liquid Containers: Up to 3 m (10 ft)
Applicable Surface Materials: All surfaces, optimized for metal



MECHANICAL:



Tag Form Factor: Hard label tag
Tag Materials: White specially coated PP
Recommended Ribbon: Full resin
Recommended Printer: Zebra ZT410 Silverline
Attachment Method: High tack adhesive
Dimensions: 60 x 25 x 1.2 mm (2.36 x 0.98 x 0.047 in)
Weight: 0.6 g



ENVIRONMENT:



Operating Temperature: -35° to +85°C (-31° to +185°F)
