Confidex Ironside Classic™

Confidex Ironside Classic™

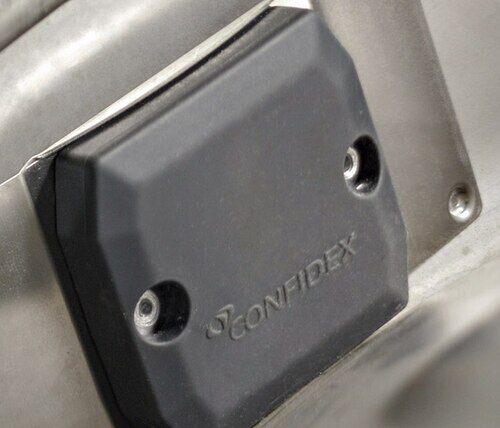

Confidex Ironside Classic™ RFID Tags enable several on-metal identification challenges to be solved, which were earlier impossible with passive RFID. These tags can be mounted easily on metallic surfaces either mechanically with screws or pop rivets or with industrial adhesive. For a superior grip, Confidex also offers a welding bracket for these tags, which can be used when spot welding the tag onto the surface. As well as being able to survive various challenging environments, from being dropped under water to tropical weather and mechanical impacts, Ironside Classic tags have passed the rigorous testing requirements for the Aerospace Standard AS5678 specification as the first tag in the market. These tags are commonly used in tracking assets from steel pallets to train wagons.

Description

  • Metal-mount RFID tag.
  • Impact-resistant.
  • AS5678 compliant.
  • IP 68 rated.
  • One of the most durable tags for challenging industrial asset management applications.



Product Details

ELECTRICAL:



Air Interface Protocol: EPCglobal UHF Class 1 Gen 2v2
Operating Frequency: Global (860-960 MHz)
IC Type: Impinj Monza 4QT™
Memory: EPC 128 bit, User 512 bit, TID 96 bit
EPC Memory Content: Unique, randomized number encoded as a default
Max Read Distance – US: Up to 7 m (23 ft)
Max Read Distance – EU: Up to 9 m (30 ft)
Max Read Distance – On Plastic: Up to 3 m (10 ft)
Applicable Surface Materials: Ideally on metal, works on most materials



MECHANICAL:



Tag Form Factor: Hard tag
Tag Materials: High quality engineering plastics (surface thermoplastic elastomer)
Attachment Method: Acrylic adhesive, screw, pop rivets, welding
Dimensions: 51.5 x 47.5 x 10 mm (2.03 x 1.87 x 0.39 in)
Weight: 22 g



ENVIRONMENT:



Operating Temperature: -40° to +85°C (-40° to +185°F)
