Description

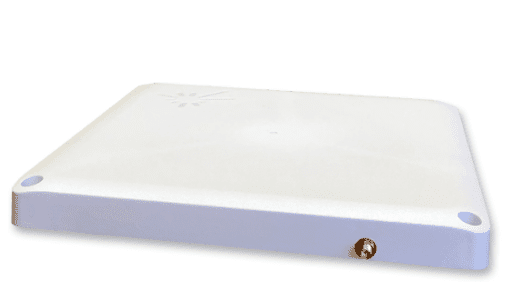

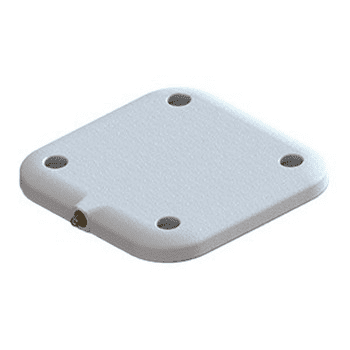

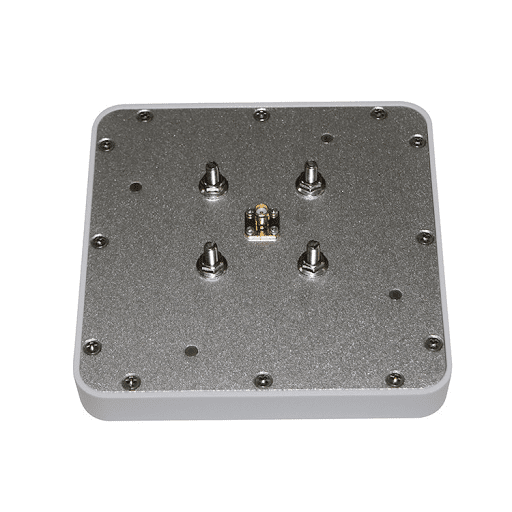

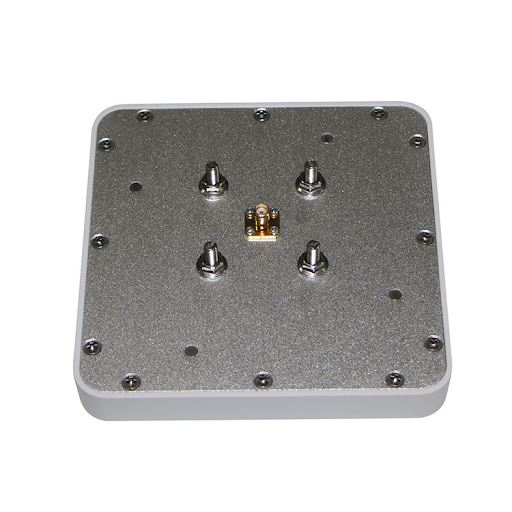

Circular Polarized UHF Antenna
The Circular Polarized UHF Fixed RFID Antenna was developed to offer reliable reading of RFID tags irrespective of the position of the tags. This is through its ability to polarize signals. It ensures that no scans go unnoticed.
It is built using an industrial design making it appropriate for indoor and outdoor usage.
Product Specifications
Operating Frequency:
865 MHz – 928 MHz (ETSI & FCC compatible in one model)
Antenna Gain:
9 dBic Circular Polarization (RHCP/LHCP options available)
Polarization Type:
Right-Hand Circular Polarization (RHCP) / Left-Hand Circular Polarization (LHCP)
Maximum VSWR:
1.3:1
3dB Beamwidth – Azimuth:
70°
Front-to-Back Ratio:
20 dB
Maximum Input Power:
10W
Input Impedance:
50 Ohms
Connector Type:
SMA Female Connector
Dimensions:
25.4 × 25.4 × 2.1 cm (10 × 10 × 0.83 in)
Weight:
Approximately 790 grams
Operating Temperature:
-25°C to +70°C
Environmental Protection:
IP68 Rated – Dustproof & Waterproof
Radome Material:
Polycarbonate
Mounting Options:
Flush mount / Through-hole mount / Optional 100mm VESA mount
High-Performance RFID Antenna for Inventory Management
High Performance RFID Antenna for Inventory Management has been created to enhance RFID read effectiveness and operation efficiency in environments where tag density is high.
Performance Attributes :
- Long range stable RFID readings
- Wide coverage area for bulk scans
- Consistency even when tags are oriented differently
- Minimized number of missed reads in dynamic settings
The antenna will make it easier to adopt automated RFID inventory management systems.
Circularly Polarized RFID Antennas for Reliable Tag Detection
In contrast to linear antennas, the Circularly Polarized RFID Antenna will be able to detect RFID tags irrespective of the direction or orientation.
Advantages of Circular Polarization :
- Increased reading accuracy
- Increased ability to read moving tags
- Fewer dead spots
- Improved efficiency
This makes Circular Polarization highly advantageous for use in warehouses.
Circular Polarized UHF RFID Antenna for Warehouse Tracking
Logistics and warehouses need to have reliable RFID systems for inventory tracking.
RFID Applications in Warehouses
The Circular Polarized UHF RFID Antenna is ideal for warehouse applications such as:
- Tracking pallets
- Inventory management in racks
- Dock door RFID scanning
- Forklift tracking systems
- Inventory counting through automation
With its high gain feature, it guarantees reliable RFID detection in any warehouse environment.
Product Details
Industrial Circular Polarized RFID Antenna
The antenna is designed with industrial strength in mind as it has been made to be tough and reliable.
Industrial-Strength Design
The Industrial circular polarized RFID antenna consists of:
IP68 waterproofing
Durable polycarbonate radome
DC grounded lightning protection
Dust and water resistance
It is thus well-suited for use in manufacturing plants, logistics centers, and outside RFID deployments.
Circular Polarized UHF Fixed RFID Antenna
In being a Circular Polarized UHF Fixed RFID Antenna, the product has been engineered to serve a fixed installation of the RFID system with constant performance.
Advantages of the Fixed RFID Infrastructural Product :
Constant RFID monitoring
Automated assets identification
Minimal physical effort for scanning
Easy connection to RFID reader systems
The antenna can also be linked to warehouse management software, ERP and RFID middleware.
Benefits of Using Circular Polarized UHF Antenna
RFID Read Improvements
Circular polarization increases RFID tag detection regardless of orientation.
High-Performance RFID Long Distance Reading
A high gain rating of 9 dBic ensures consistent performance.
Tough Construction
IP68 rating provides suitability for both indoor and outdoor use.
Low Ownership Costs
Use of beam pattern contributes to low cost by lowering the number of antennas used.
Plug-and-Play Technology
Effective in most fixed RFID readers and tracking systems.
Circular Polarized UHF Antenna Applications
Warehouse / Logistics
Pallet, box, rack scanning and efficient handling of movable inventory.
Retail Inventory Management
Aids in automated stock-taking processes, as well as RFID retailing systems.
Manufacturing & Production
Asset, tool, and work in progress item tracking in industrial environments.
Access Control & Event Management
Deployed for RFID access systems in security applications.
Supply Chain & Distribution
Real time tracking visibility through the logistics chain.
Why Choose Acube Infotech?
ACUBE INFOTECH specializes in offering reliable and high quality circular polarized UHF antennas in addition to RFID Infrastructure products in UAE and Saudi Arabia.
Why Do Our Customers Prefer Us?
High Quality Circular Polarized UHF Antenna Solutions
Expertise in RFID Infrastructure
Reasonable Prices with Bulk Supply Options
Technical Assistance within Region
Support for Integration with RFID Readers & Software Systems
Swift Delivery within UAE & Saudi Arabia
Buy Circular Polarized UHF Antenna from Acube Infotech
If you are searching for a good Circularly Polarized RFID Antenna suitable for industrial RFID usage or warehouse tracking or automated inventories, then Acube Infotech offers you solutions that will fulfill all of your requirements.
If you need a High performance RFID antenna for inventory control purposes or an industrial circular polarized RFID antenna, we can assist you in choosing RFID systems that will work best for your implementation.
